What might you do should you might make a circuit hint by simply bending a chunk of paper? How about bridging fashionable applied sciences and conventional handicrafts whereas offering alternatives for studying expertise in each.
As a part of our interdisciplinary analysis into digital craftsmanship on the MEI Lab at the Faculty of Artistic Media, Metropolis College of Hong Kong, we got here throughout analysis that demonstrated tips on how to impregnate paperlike materials (technically a “nonwoven textile”) with the form of liquid metallic used to make conductive ink. Initially, the impregnated materials is nonconductive as a result of an insulating oxide layer varieties that encapsulates microscopic droplets of the liquid metallic. Nonetheless, making use of stress by way of formed molds will crack open the insulating layer, permitting neighboring particles to merge, and thus creating conducting areas within the form of the mildew.
Each of us have been launched as kids to origami and kirigami (much like origami, besides that slicing is allowed along with folding). We, together with our colleagues, determined to see if these conventional methods might be used on the brand new materials to remove the necessity for molds. Our objective was to permit crafters to make hybrid papercraft creations that contained simply built-in parts equivalent to LEDs and motors.
Specifically, we have been enthusiastic about the potential for combining the separate phases of making a papercraft object and including electrical conductors. Earlier approaches to creating electrified papercraft objects relied on including a separate versatile conductor—equivalent to adhesive copper tape—to the paper. This will increase the hassle required and runs the chance of making open circuits because the conductive materials conforms to the article’s form.
Isopropanol and a gallium-indium liquid materials are used to impregnate a paperlike materials that’s 55 % polyester and 45 % cellulose. Digital elements equivalent to LEDs and motors are held in place with masking tape. James Provost
Our first step was to see if the pressures concerned in bending and slicing alone can be enough to create conductive traces. We turned frequent guests to our college’s supplies science and engineering division to manufacture samples after which to borrow tools to characterize their habits.
We quickly confirmed that the pressures concerned in folding and slicing—starting from 2.5 to 100 megapascals—have been sufficient to create conductive traces. We additionally confirmed that standard dealing with of the paper didn’t by chance create conductive paths.
We made a variety of adjustments to the unique methodology for creating the impregnated paper. For instance, as an alternative of immersing the paper in a combination of isopropanol and liquid metallic, we used an airbrush to spray the combination onto the paper. That allowed us to range how a lot was deposited on the paper and to make use of cardboard stencils to masks some areas from being impregnated, permitting folding and slicing in these areas with out creating undesirable conductive traces. We additionally experimented with the ratios of isopropanol and liquid metallic.
We turned frequent guests to our college’s supplies science and engineering division.
After optimizing the blending ratios and quantity utilized by way of airbrush, we have been left with a fabric that reliably conducts with a resistance of 23.18 ohms per centimeter for minimize edges and 4.4 Ω/cm for folded edges. The folded edges retain their conductivity even when later flattened out, and the conductivity is identical on both facet of the paper. We estimate the mixed price of the paper and liquid metallic (out there from many on-line distributors) is about US $1.80 to make a 10- by 10-cm piece.
The subsequent step was attaching digital elements to the traces. To make the connections extra versatile, we minimize down the inflexible leads of LEDs and hooked up conductive thread to the stumps. We then held the threads in place utilizing masking tape. Equally, we linked conductive thread to the terminals of an influence provide.
As our objective was to make use of this materials educationally, we now wanted to make it simple for a newbie—whether or not in papercraft or electronics—to strive it out. We created a toolkit, dubbed LiqMetCraft. This consists of all of the required supplies, plus a browser-based software program instrument that lets the consumer choose or create designs after which offers steering on bodily development.
We created three variations of LiqMetCraft. The primary relies on Chinese language papercraft wherein a chunk of paper is folded right into a fanlike section after which minimize to create a radially symmetric design. We offered circles of paper with a doughnot-shape impregnated area, with an untreated area that created a niche within the donut. We hooked up optimistic and damaging terminals to both facet of the hole. The consumer might specify within the software program what number of instances they wished to fold the disk after which draw potential cuts, receiving instant suggestions on what the unfolded disk would seem like, in addition to steering on tips on how to place LEDs.
To make our paper pattern, isopropanol and liquid metallic are combined in particular ratios whereas being cooled by an ice tub. Sonic waves are used to make sure the liquid metallic breaks up into microscopic droplets. The combination is then utilized by way of airbrush, whereas stencils forestall some areas being coated for various papercraft templates. James Provost

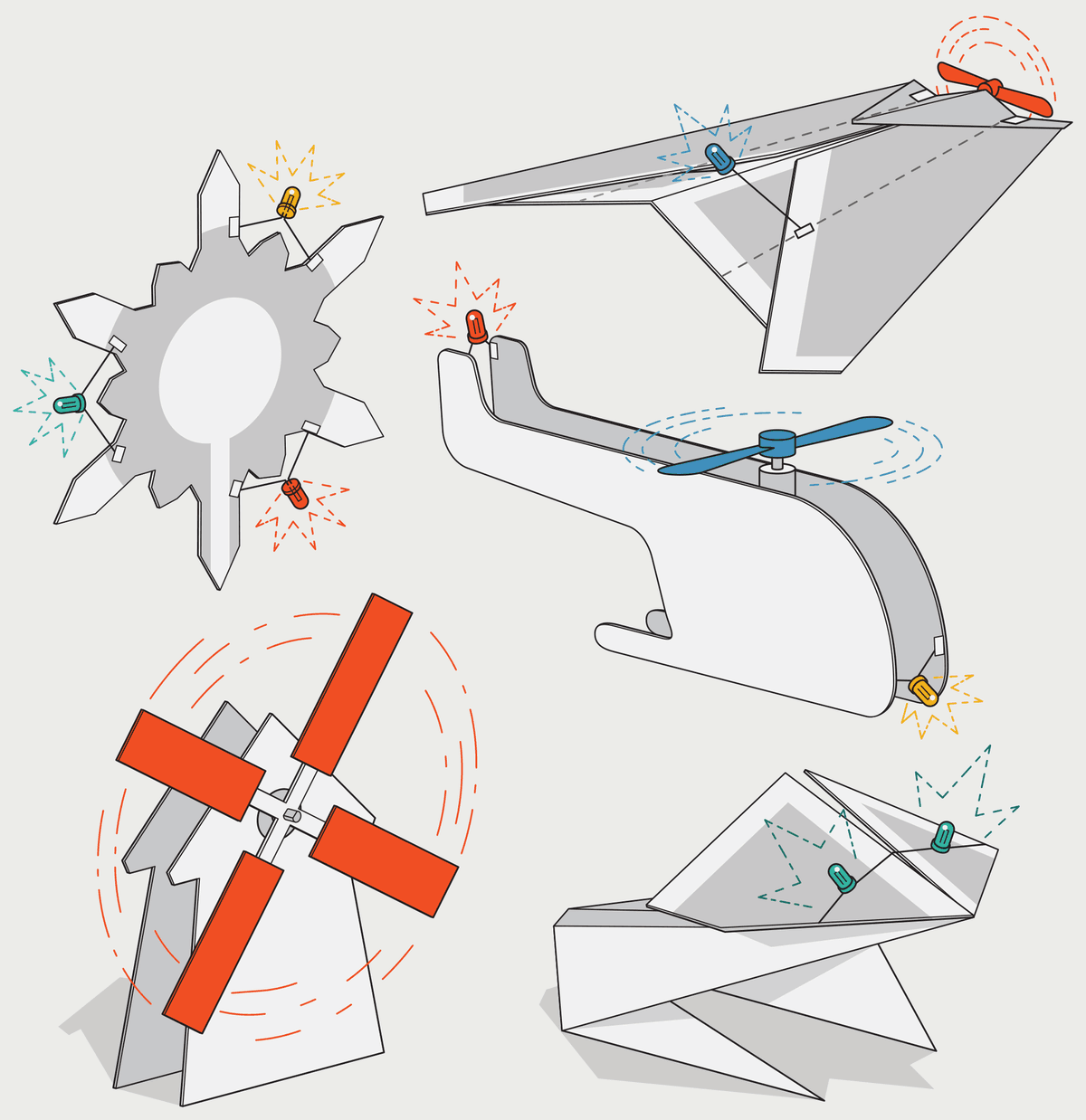

The second model of LiqMetCraft was primarily based on origami. We provided rectangular items of paper with two conductive areas separated by a border down the center. The software program instrument offered templates for 12 origami designs, with step-by-step directions for folding them. As soon as the undertaking was accomplished, the consumer might add elements, equivalent to a motor, by taping them to the folds.
The ultimate model supported 3D paper mannequin making. On this case, the preliminary paper provided was a rectangle with an untreated rectangular central space. By slicing this paper in half after which additional slicing the halves into patterns separated by a spacer, the consumer might make varied self-standing fashions. The software program allowed the consumer to attract a sample on display, after which have a slicing machine produce a template for slicing the impregnated paper.
We had 42 contributors, evenly divided into three teams, check out the totally different variations. All discovered it simple to make use of, and we have been pleasantly shocked that some contributors moved past the provided designs to their very own creations.
For full particulars of the present course of, see our open entry LiqMetCraft analysis paper revealed in CHI ‘26: Proceedings of the 2026 CHI Convention on Human Elements in Computing Techniques. Sooner or later, we plan to strive totally different substrates for the impregnating answer, in addition to discover additional forms of papercraft, equivalent to pop-up books. We’re additionally enthusiastic about creating methods to make use of the fabric to help inputs in addition to outputs by establishing switches and potentiometers immediately out of the fabric. Think about conventional papercraft creations changing into interactive units!
